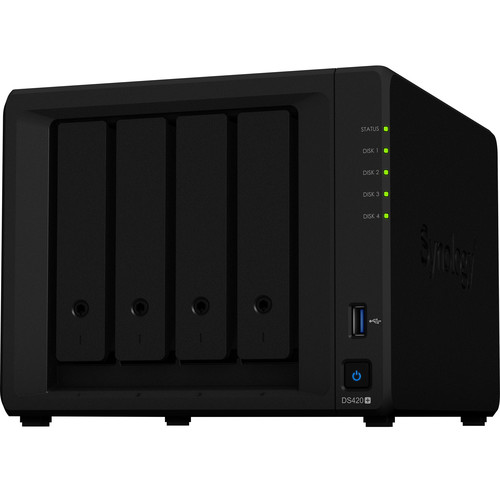

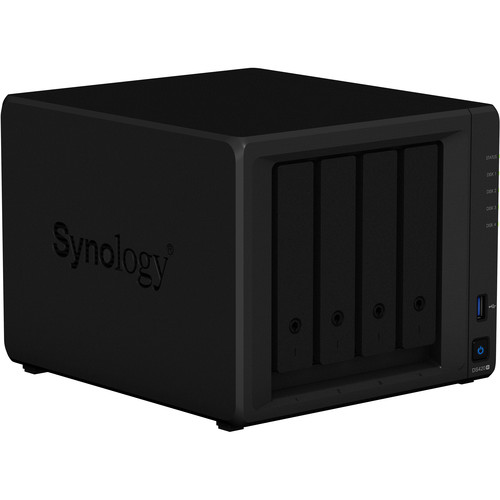

Synology DS420+ 4-Bay NAS Enclosure – High-Performance Storage Solution
$374.99
Compact 4-bay NAS enclosure with dual-core processor, AES-NI hardware encryption, and dual M.2 NVMe SSD slots for cache acceleration.
In stock
Description
The Synology DiskStation DS420+ 4-Bay NAS Enclosure is designed for IT enthusiasts and home users, offering a powerful and compact NAS solution for data sharing, video streaming, and photo indexing. Built with a 2.0 GHz Intel Celeron J4025 Dual-Core processor and an AES-NI hardware encryption engine, it provides fast performance and secure data storage.
With its dual M.2 2280 NVMe SSD slots for cache acceleration and 2GB of DDR4 RAM (expandable to 6GB), the DS420+ delivers fast sequential read and write speeds of up to 226 MB/s and 225.74 MB/s, respectively. The dual Gigabit Ethernet ports support link aggregation and failover, ensuring reliable data transfer and connectivity.
The DS420+ runs on Synology DiskStation Manager (DSM) OS, a user-friendly, browser-based operating system that simplifies NAS management. It supports up to 2048 user accounts and 1500 maximum concurrent connections, making it ideal for small to medium-sized businesses and home networks.
For data protection, the DS420+ supports various RAID configurations, including RAID 0, 1, 5, 6, 10, Synology Hybrid RAID, and Basic RAID, as well as JBOD for individual drive utilization. The enclosure is also designed for energy efficiency, with features like scheduled power on/off cycles, hard drive hibernation, and a noise dampening design rated at 19.8 dBA.
The Synology DS420+ operates on 100-240 VAC at 50/60 Hz and comes with an accessory pack, 90W AC power adapter, AC power cord, and two RJ45 LAN cables. It is backed by a limited 3-year warranty for added peace of mind.
Additional information
| Weight | 8.05 lbs |
|---|---|
| Dimensions | 23.3 × 19.9 × 11.4 in |
| CPU | 2 GHz Intel Celeron J4025 Quad-Core (Maximum Boost: 2.9 GHz) |
| Power Source | AC Adapter |
| Supported File Systems | Internal: BTRFS, EXT4<br />External: BTRFS, EXT3, EXT4, FAT, HFS+, NTFS, exFAT |
| Supported Browsers | Chrome, Edge, Firefox, Internet Explorer, Safari |
| Supported Languages | Brazilian Portuguese<br>Czech<br>Danish<br>Dutch<br>English<br>French<br>German<br>Hungarian<br>Italian<br>Japanese<br>Korean<br>Norwegian<br>Polish<br>Portuguese<br>Russian<br>Simplified Chinese<br>Spanish<br>Swedish<br>Thai<br>Traditional Chinese<br>Turkish |
| Encryption | AES-NI |
| Security Features | Kensington Security Slot |
| VPN Server Connections | 30 |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | 28.3 W (Typical)<br />8.45 W (Standby) |
| Max Volume Number | 64 |
| PSU Wattage | 1 x 90 W |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 5 to 95% |
| Storage Temperature | -5 to 140°F / -20 to 60°C |
| Certifications | BSMI, CCC, CE, EAC, FCC, Kcc, RCM, RoHS, VCCI, as per Manufacturer |
| Status Monitoring | LED Indicator |
| Cooling | 2 x 92 mm Fans |
| Max Cameras Supported | 25 |
| Max User Accounts | 2048 |
| Total Installed Memory | 2 GB DDR4 |
| RAID Modes | RAID 0, 1, 10, 5, 6, JBOD, Synology Hybrid |
| Total Memory Slots | 1 |
| Maximum Memory Capacity | 6 GB |
| Number of Bays | 4 x 2.5"/3.5"<br />2 x M.2 (2280) |
| Connections | 2 x USB Type-A (USB 3.1 / USB 3.2 Gen 1 (5 Gb/s))<br />2 x RJ45 (Gigabit Ethernet) |
| Compatible Drive Interface | SATA III |
| Media Card Slots | None |
| Form Factor | Desktop |
| Hot-Swap Support | Yes |
| Max Groups | 256 |
| Wake on LAN | Yes |
| Link Aggregation and Failover Support | Yes |
| Supported Protocols | CIFS/SMB<br>CalDAV<br>FTP<br>HTTP<br>HTTPS<br>NFS<br>SMB 3.0<br>SNMP<br>iSCSI |
| iSCSI LUN | 256 |
| iSCSI Target | 128 |
| Max Concurrent Connections | 1500 |
| Max Folders | 512 |
| Max Sync Tasks | 8 |
| Noise Level | 19.8 dBA |
