Description

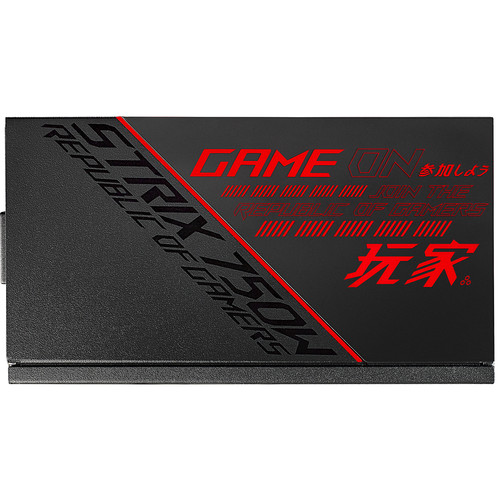

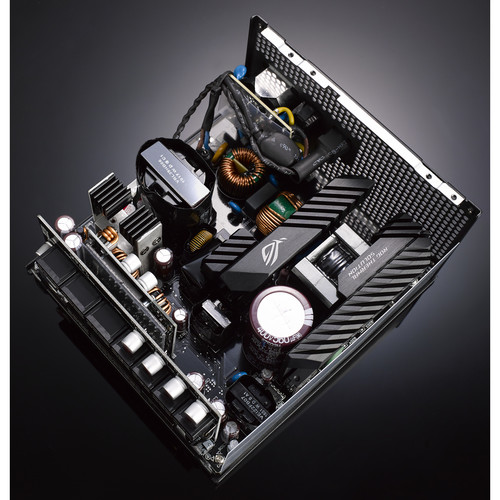

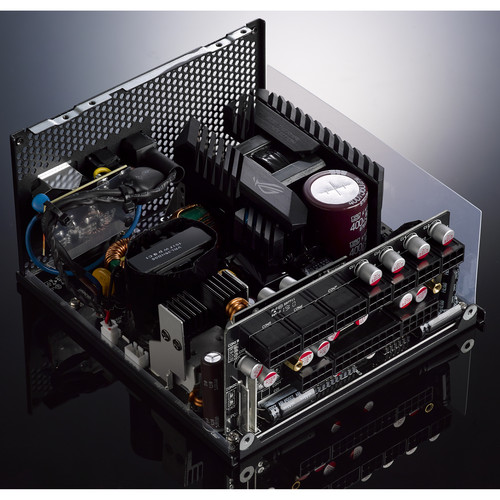

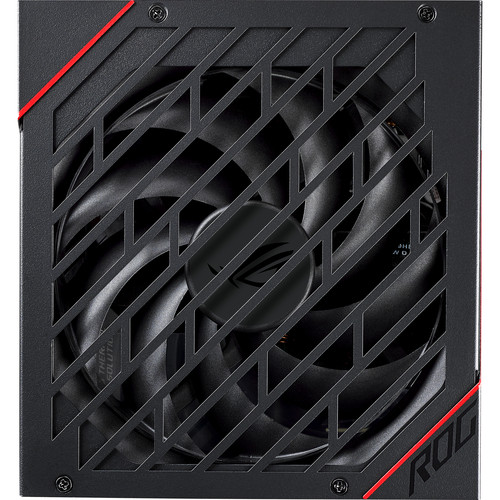

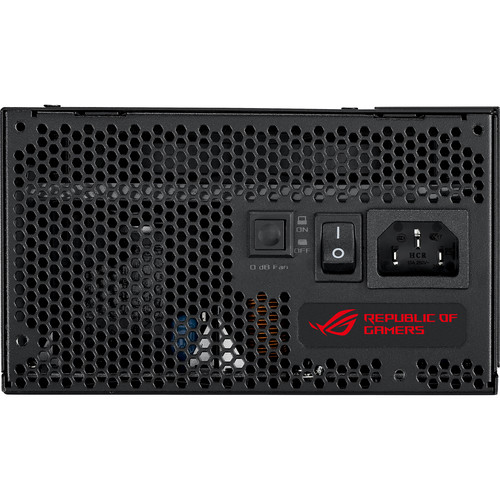

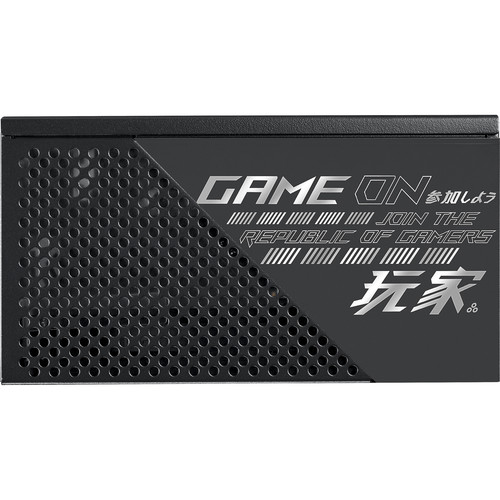

The ASUS Republic of Gamers STRIX 750W 80 Plus Gold Modular ATX Power Supply delivers efficient power delivery with 80 PLUS Gold certification, ensuring high-performance and reliability. It features 0 dB technology for silent operation and a fully modular design to reduce clutter and improve airflow. The power supply is equipped with one 24-pin motherboard connector, two 4+4-pin CPU connectors, four 6+2-pin PCIe connectors, eight SATA connectors, and three 4-pin peripheral/Molex connectors, making it ideal for gaming and enthusiast PCs. Integrated heatsinks enhance heat dissipation and minimize fan noise, which is activated when the system reaches 40% TDP. Additionally, the power supply comes with magnetic stickers for cosmetic customization to fit your system’s aesthetic.
Additional information
| Weight | 6.91 lbs |
|---|---|
| Dimensions | 12.3 × 7.3 × 4.7 in |
| Cable Design | Modular |
| Max Load for +5 Vsb | 3 A |
| Protection | Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection |
| Compliance | ATX 12 V |
| Form Factor | ATX |
| Bearing Type | Ball |
| Fan Size | 135 mm |
| Active Power Factor Correction | None |
| Efficiency Rating | 80 PLUS Gold |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Max Load for +5 V | 20 A |
| PCIe Connector Distances | 26.6" / 675 mm |
| Max Load for +3.3 V | 20 A |
| Max Load for -12 V | 0.3 A |
| Number of +12 V Rails | 1 |
| Total Wattage | 750 W |
| EPS Connector Distances | 39.4" / 1000 mm |
| ATX Connector Distance | 24" / 610 mm |
| Peripheral Connector Distances | 17.7" / 450 mm |
| SATA Connector Distances | 31.9" / 810 mm |
| Certifications | RoHS, as per Manufacturer |
